Surface/Calibration Sander

Name: Surface/Calibration Sander
SKU: 0

The thickened high-strength body frame, CAE-optimized and heat- stabilized steel structure, and the use of top-grade international accessories achieve outstanding sturdiness and reliability.
Applicable to the wood industry, construction industry, electronics industry, wind power industry, wood plastic industry, etc.
SR-RP1300/ SR-RP1000

Highlights

◆ 5 innovative structures, 18 upgraded configurations, it is a verified practical solution.

More videos

Specification

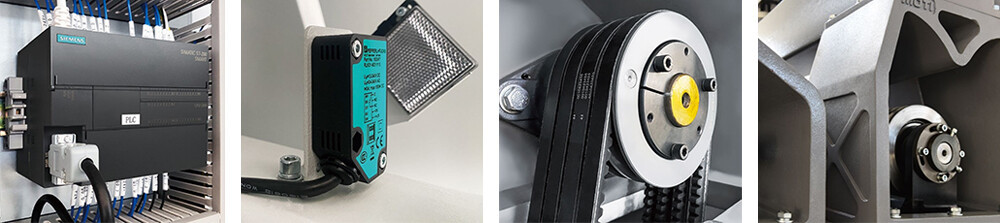

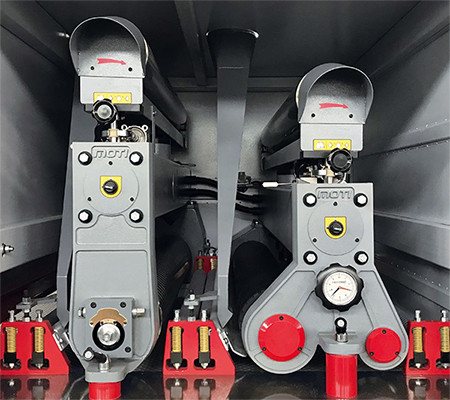

ABB electrical parts Enduring and steady service life.	Casting parts Sanding units and pressing structure.	Ball screw (4pcs) Maximum table height adjustment accuracy.

Double row chains Precise positioning of the table and high-quality processing.	Control Panel Numeral control panel CH-525 is used to adjust thickness figures.	Double pressing roller To ensure stable feeding of work piece.

Efficient dust removal system To clean the work piece and the abrasive belt efficiently.	Brush roller At rear side for panel cleaning.	Air jet cleaning The device is complete with electronic tracking, exhaust hood, filter and pressure adjustment.

Conveyor belt automatic centering It is carried out by separate cylinders.

Configuration

Technical Parameters

Parameter	SR-RP1300	SR-RP1000
Max Working Width(mm)	1300	1000
Min. Working Length(mm)	580	580
Working Thickness(mm)	3-110	3-110
Total Motor Power(kw)	56	45
Feeding Speed(m/min)	5-30	5-30
Abrasive Belt Size(mm)	1330×2200	1030×2200
Working air pressure(Mpa)	0.6	0.6
Air consumption(m3/h)	≥ 17	≥ 17
Volume of Dust Collection Device(m3/h)	6960	6960
Overall Dimensions(mm)	2040×2650×2160	1740×2650×2160
Net Weight(kg)	3900	3700

For more configuration structure information,Please send email to webmaster: webmaster@motimac.com
