Products
‹
›
‹
›
Product Overview
Excellent performance: 50 square meters of grinding per hour.
Removing slag,deburring, edge rounding of various materials.
The contact ratio between the grinding medium and the workpiece is 40% higher than the traditional grinding process: it is easier to achieve the ideal effect of rounding and blunting.
Can be integrated into automated assembly lines or unmanned production workshops.
Low temperature grinding:operate at a low speed of about 300 revolutions per minute to reduce workpiece wear rate by 40%.

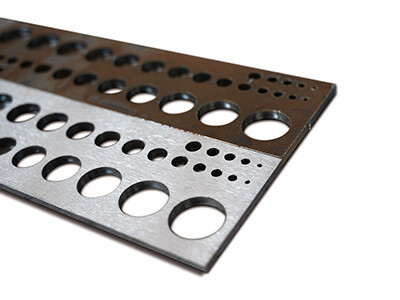

Grinding effect
Unique Product Advantages

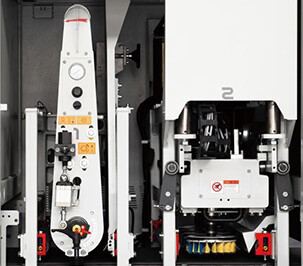

Integrated modular design: The sanding units can be replaced and freely combined.
Each unit can be individually controlled for lifting, enabling it to adapt to a wider variety of working conditions.

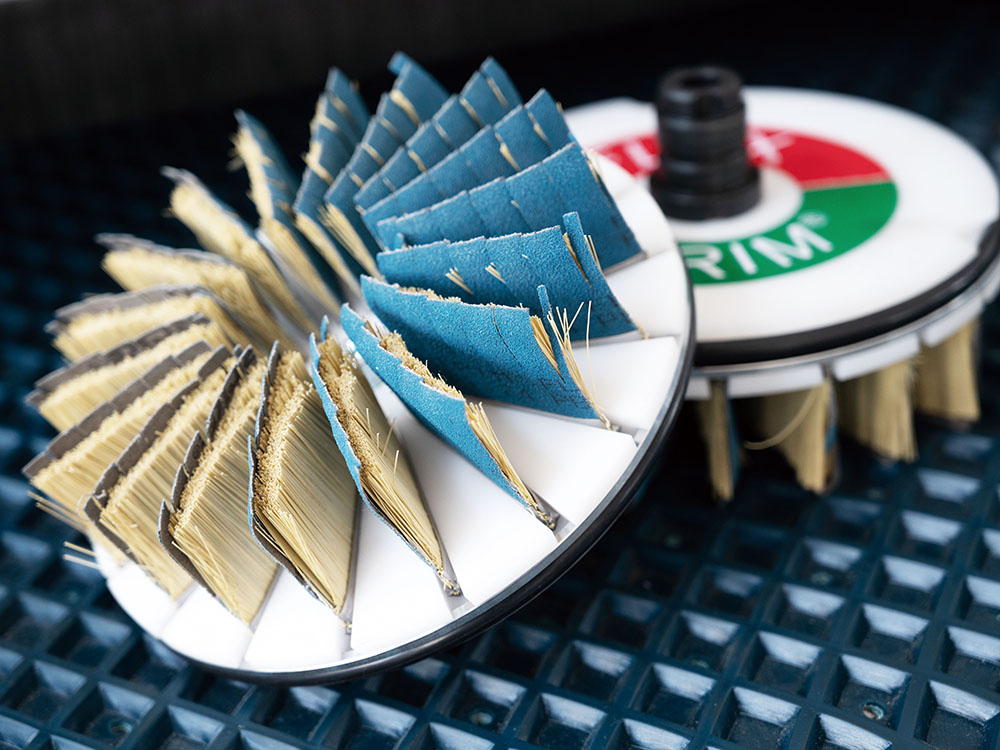

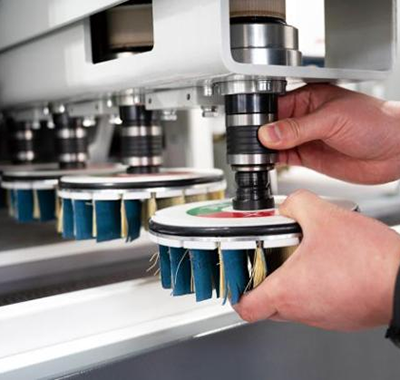

Disc Brush
Quantity: 4
Brand: Flex Trim
Adopt quick-release plug installation design. The abrasive material can be replaced according to the requirements. And only the sanding strips need to be replaced, greatly reducing the cost.

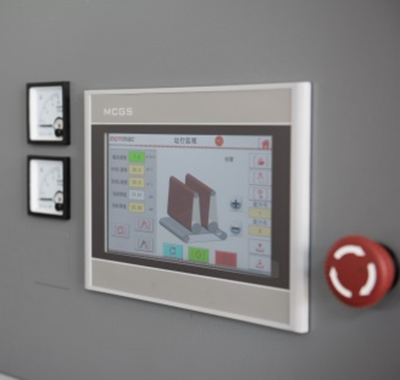

It is controlled by a 7 - inch touch screen, which is simple, intuitive, convenient and fast.
It is equipped with a built - in PLC control system, ensuring timely and accurate signal response.

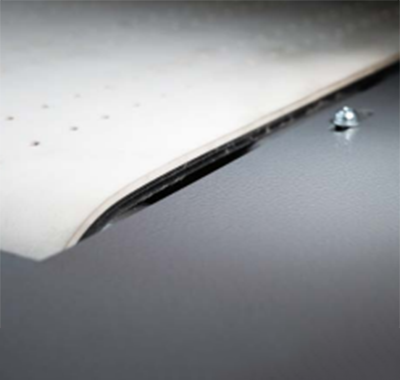

The rubber conveyor belt’s high-temperature resistance and wear resistance, which greatly enhances the adhesion force and it’s service life.
50%Vacuum+50%Magnetic adsorption

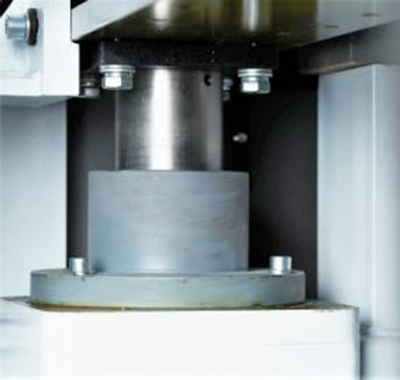

The lifting system adopts an internal ball screw, ensuring smooth and stable lifting.
The service life of the ball screw is more than 10 times that of an ordinary threaded screw, and it offers higher precision.

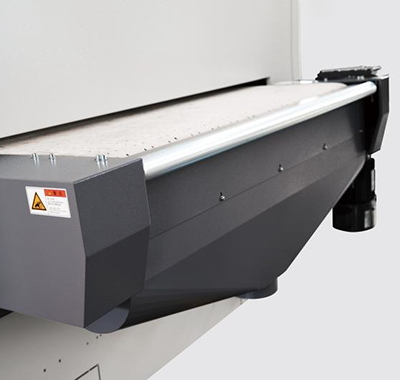

Energy-saving conveyor belt cleaning
It ensures that there is no accumulated dust on the surface of the conveyor belt, maintaining the friction coefficient of the conveyor belt and the grinding precision.

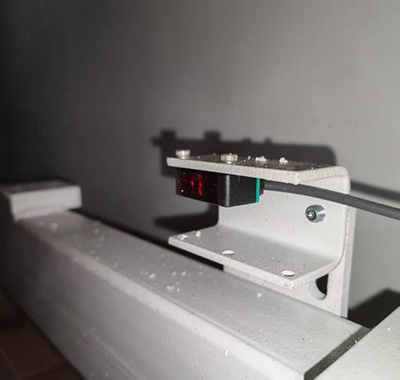

It adopts the opposed photoelectric switch of Pepperl+Fuchs from Germany:
It has a strong penetrating power, which can avoid misjudgment of the deviation of the sanding belt.
At the same time, the light intensity is adjustable, making it convenient and flexible.

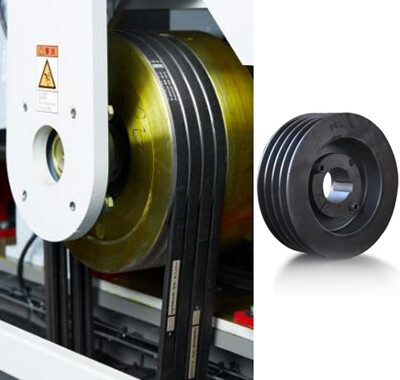

Transfer System:
The transmission belt adopts German brand OPTIBELT. The pulley installation adopts a cone sleeve tensioning structure to avoid damage to the motor or roller during installation and is easy to maintain.

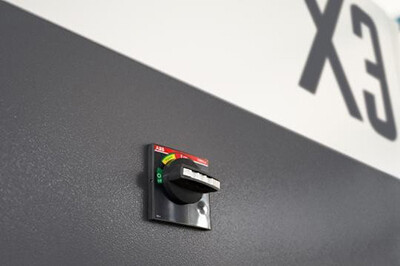

Extension Handle of the Circuit Breaker
The door can only be opened after forced power-off. The power-off operation can be carried out externally, providing convenience for equipment maintenance and emergency power-off.

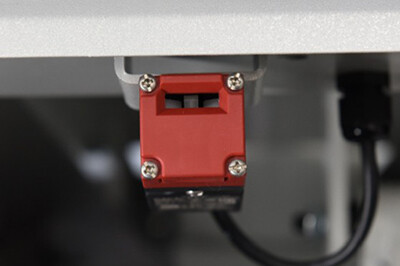

Door-opening Power-off Protection
If someone opens the equipment door during the operation, the system will immediately trigger the power-off and emergency stop function to ensure personal safety.
Technical Parameters
