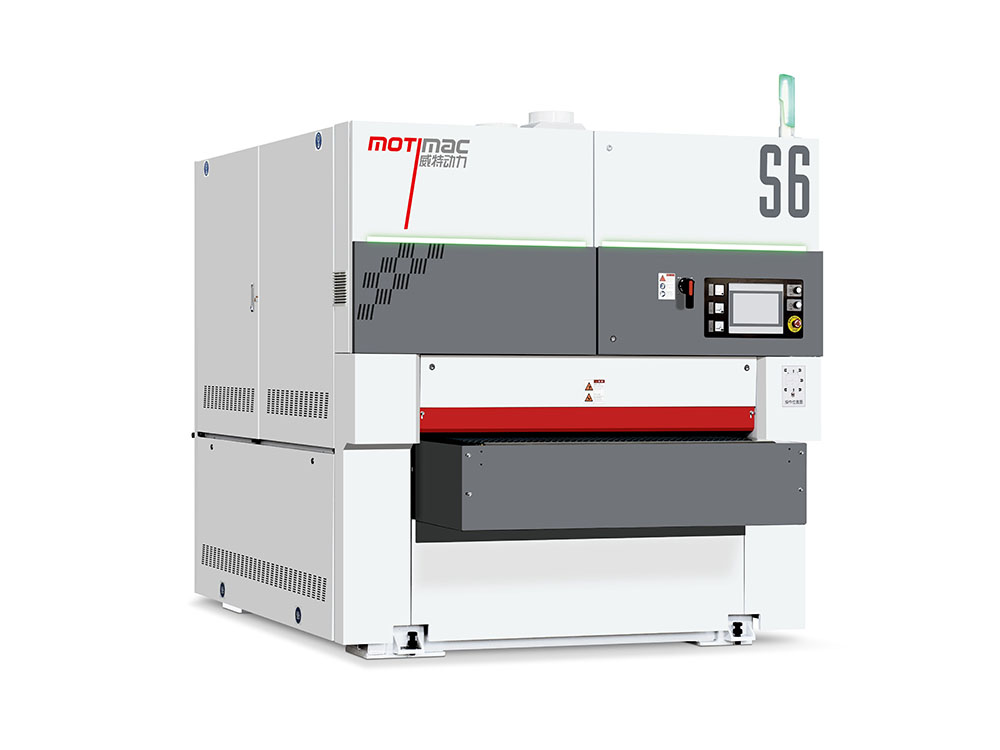

Standard Lacquer Sander

Standard Lacquer Sander

Application:
Suitable for sanding of various primers
Suitable for fine polishing of various board surfaces
Contact Us

Download

Highlights

◆“Platform +” modular design ensures the stability and uniformity of product quality.

◆ It can sand the short panel with even 280mm length.

◆ Low cost and high value, matching the practicality and productivity.

◆ The application of the standardized interface of the system facilitates is easy for the integration of information and the access of production lines.

More videos



Sanding effecf

WT RRG1300V before.jpg

Specification




Abrasive belt-2620mm

Prolong the service life of the belt.

10'' touch display

Simple and intuitive, convenient and fast.


Siemens electrical components

Stable and reliable;
Stronger Compatibility





Lifting system

Adopts a built-in ball screw;
Increated service life 10 times ;
Increated precision 25 times.


Double row chain sprocket

Military industrial enterprise produced;
Increated service life 3 times ;
Wears less, high precision;

Opitbelt transmission belt

Installed with tapered sleeves
Easy to disassemble, high balance, and avoid
vibration caused by pulleys.





German Conveyor belt

3 times friction than that of ordinary belts;
Not easy to warp or deform.

Energy-saving conveyor belt cleaning system

Maintains the friction coefficient and sanding
accuracy of the conveyor belt.

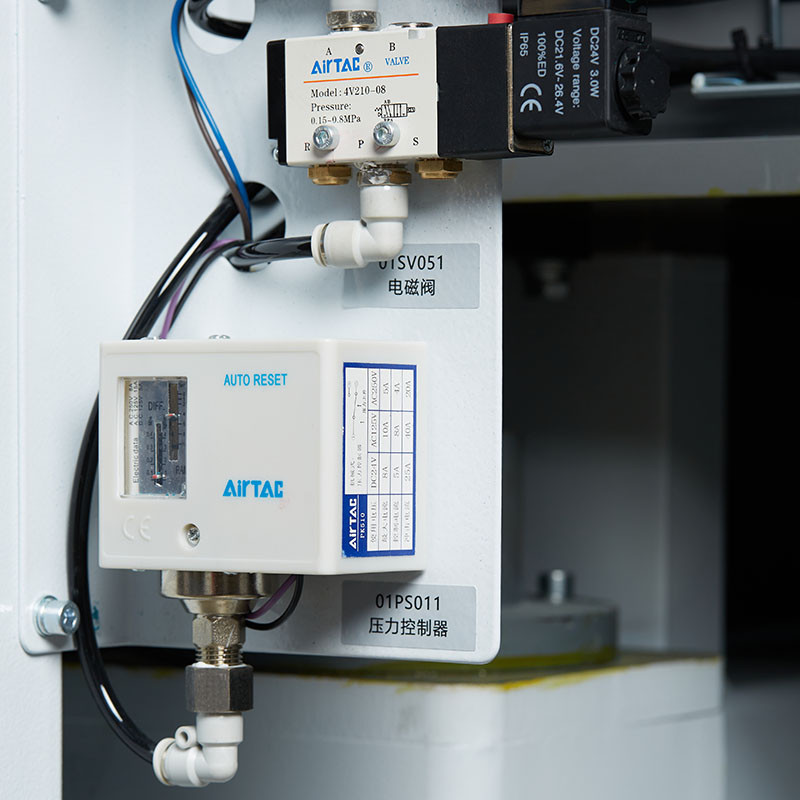

AirTAC air pressure protection device

Avoid sanding defects and damage to
equipment caused by low air pressure.

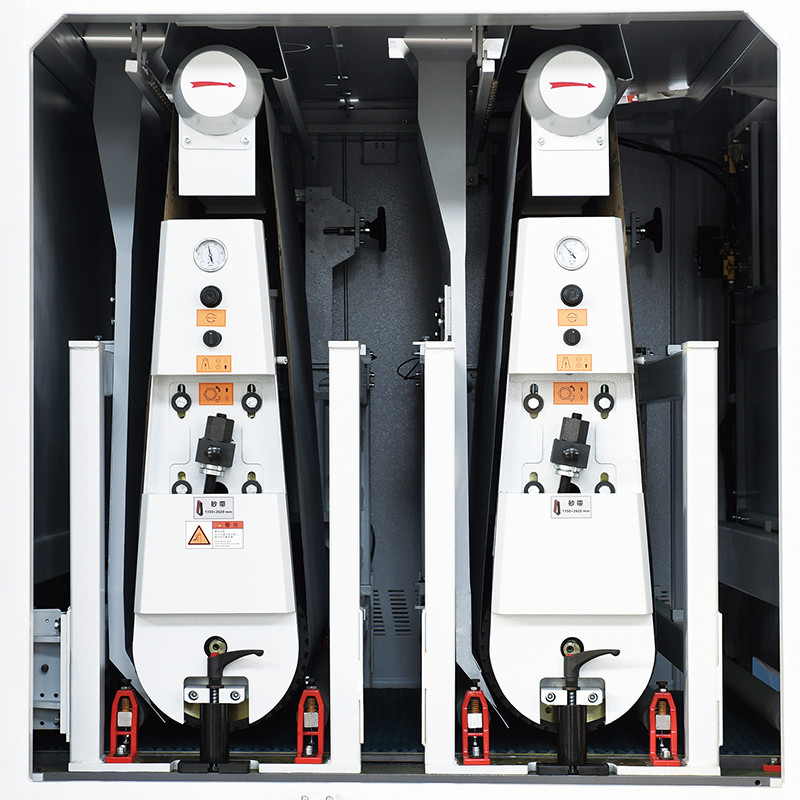

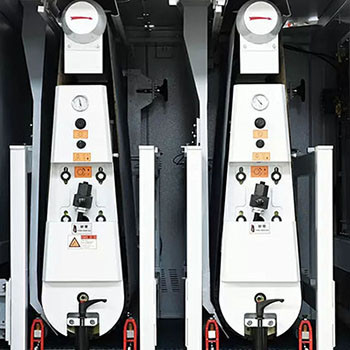

Configuration

WT RRG1300V 1.jpg   WT RRG1300V 2.jpg

Technical Parameters

Technical DataWT RRG1300VWT RR1300VWT RR700V
Max working length(mm)13001300700
Min. working length(mm)280280260
Working thickness(mm)3-1503-1503-150
Feeding Speed(m/min)5-245-245-22
Total Power(kw)383619
Belt size(mm)1350x26201350x2620730x1900
Overall Dimensions(mm)2235x3050x26002235x2700x26001580x2080x2220
Net Weight(kg)530046002100


For more configuration structure information,Please send email to webmaster: webmaster@motimac.com
