Underside Sander

Underside Sander

Supporting equipment which improves traditional craftsmanship and sanding line connections

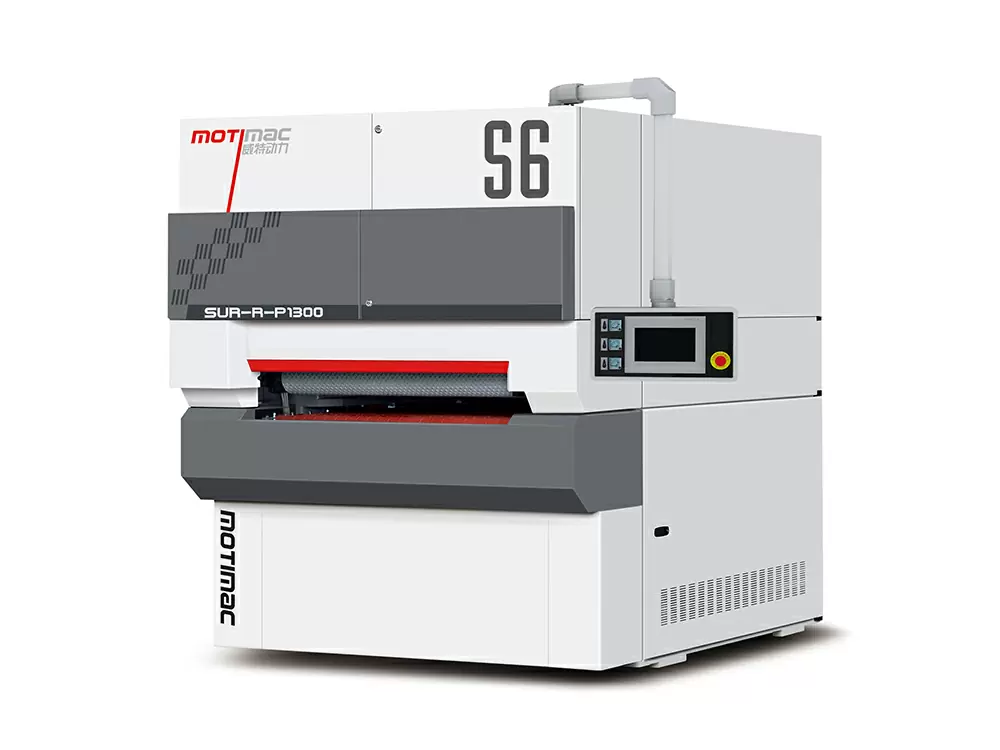

Surface sanding machine/Calibrate sanding machine/Planer sanding machine
Model: SUR-R-P1300 / SUR-R-R1300 / SUR-R1300 / SU RR700 / SU RC700 / SU RRC700 / SU RRR700 / SU KRC 700
It is suitable for surface sanding and fine sanding of all kinds of solid wood, MDF and plywood etc.

Highlights

Equipped with heavy-duty press shoes to minimize the min working length.

Can be in production line with TOP sanding machine.

Sanding effect


Specification




The eccentric spiral steel thickness gauge roller
Analyzed and designed by the CAE system, so that the surface can be with better  flatness and smoothness, and the height of the sanding roller can be easily adjusted within the adjustment range.


The cantilever beam of the sand frame

Analyzed and designed by the CAE system

Keeps the precision of the machine tool for a long time, and improves the service life of the whole machine.


Pressure shoe system

High-precision , wear-resistant





Automatic belt cleaning system

Prolong the service life;

Improve the surface sanding effect.

German Pepperl+Fuchs photoelectric


Motor protection level: IP54 dustproof




Configuration

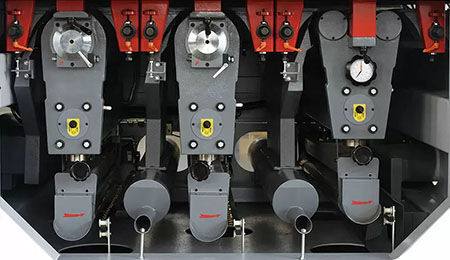

SUR-R-P1300 砂架图.jpg



Technical Parameters

Technical DataSUR-R-P1300SUR-R1300WTU RR700WTU RRC700WTU KRC700
Max working length(mm)13001300700700700
Min. working length(mm)350230260390390
Working thickness(mm)10-10010-10010-15010-15010-150
Feeding Speed(m/min)5-305-305-195-195-19
Total Power(kw)9568213434
Belt size(mm)1320×20001320×2000730x1900730x1900730x1900
Overall Dimensions(mm)2175×2976×27272175×2530×27271430x1900x20151430x2400x20151430x2400x2015
Net Weight(kg)73706170210026502650

For more configuration structure information,Please send email to webmaster: webmaster@motimac.com
