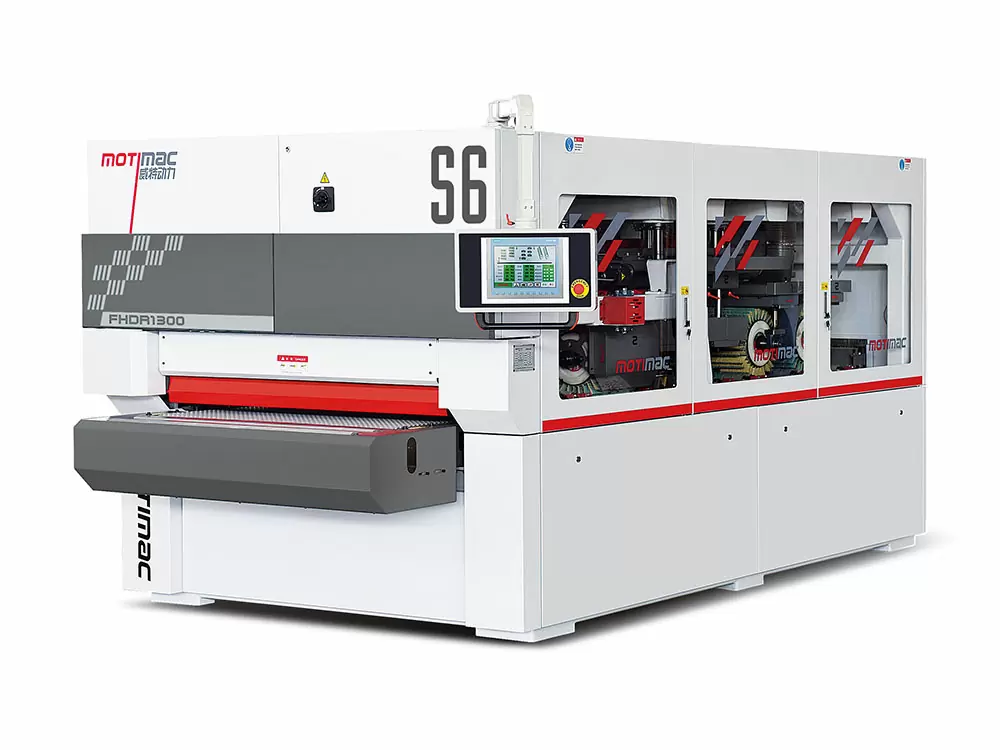

3D Brush Sander Special Curved Surface

3D Brush Sander Special Curved Surface

Suitable for all kinds of wooden doors, cabinets, art cribs, decorative lines, customized furniture, etc.
Used for panel brush sanding and lacquer brush sanding.

Highlights

Data statistics calculate production capacity, consumables automatically calculate grinding time, reduce grinding personnel and reduce labor costs.

Adopt FLEX&TRIM brand sand bars imported from Denmark, which can increase the service life by 50% and reduce the purchase cost by 30%.

More videos

Sanding effect

3D Brush Sander Special Curved Surface (8).jpg


Specification

3D Brush Sander Special Curved Surface (3).jpg

3D Brush Sander Special Curved Surface (1).jpg

3D Brush Sander Special Curved Surface (2).jpg

High-definition smart touch screen

humanized operation interface;

simple operation, intuitive data.


Danish Flex.Trim sanding element

Improve the sanding effect by 50%;

600 hours ultra-long durability .


The aluminum alloy rolle

Inlaid with dovetail slots ;

Convenient and quick TO replace.


3D Brush Sander Special Curved Surface (5).jpg

3D Brush Sander Special Curved Surface (6).jpg

3D Brush Sander Special Curved Surface (4).jpg

Double row sand roller system

Speed and reciprocating motion are frequency control, for a variety of workpiece sand.


Disc Unit

Equipped with pulleys;

Suitable for various wood pieces.

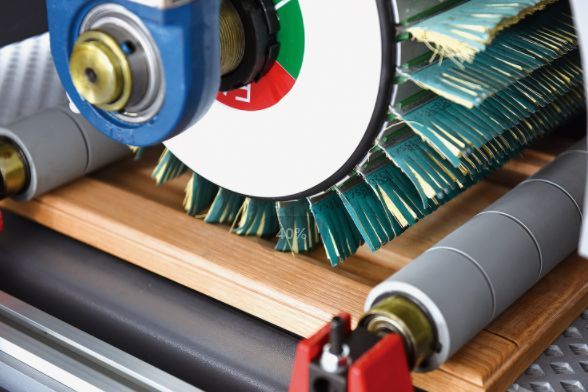

Brush roller

Two sets and relatively rotating ;

Ensure perfect sanding at every angle

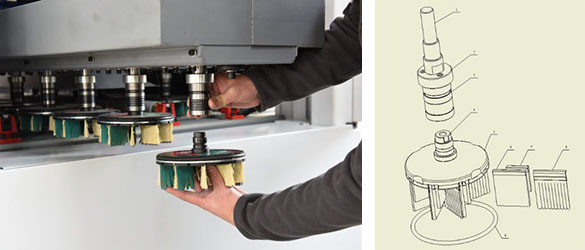

3D Brush Sander Special Curved Surface (7).jpg

Remove the brush plate and remove the outer sealing ring of the brush plate to replace the abrasive strip, which is more convenient and quick to replace.

Configuration



Technical Parameters

Technical DataFHDR1300FHDR1000
Max working length(mm)13001000
Min. working length(mm)460mm320mm
Working thickness(mm)3-1203-120
Feeding Speed(m/min)3-173-17
Total Power(kw)2011
Belt size(mm)2230x4650x21351930x4000x2100
Overall Dimensions(mm)58004700

For more configuration structure information,Please send email to webmaster: webmaster@motimac.com
